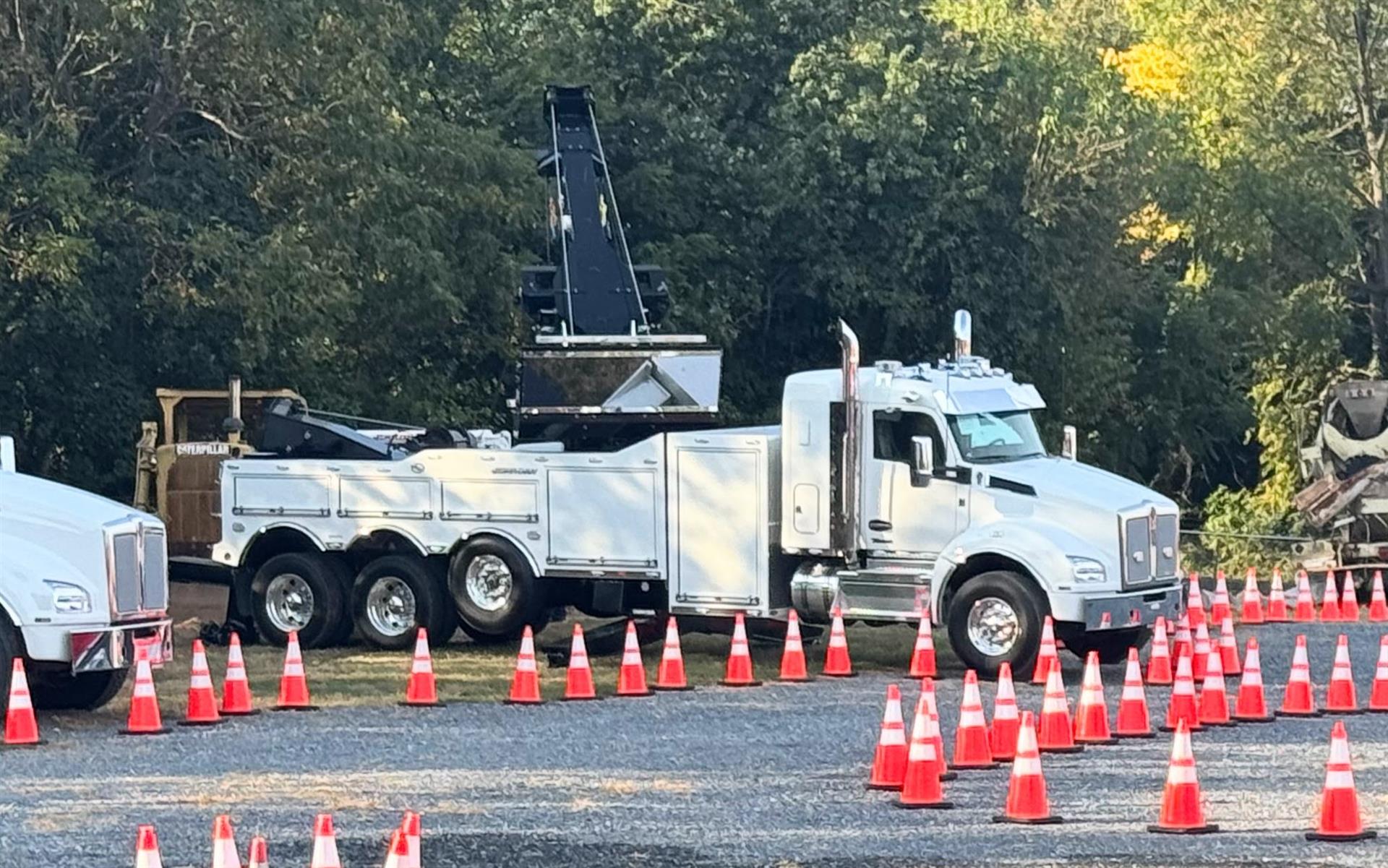

The strength and stability of the JD35/40 comes from the industry leading scissor style outriggers and unique torsion frame design.
30º Side Ext 12,000 lb
Equipped with Five (5) Winches:(2) 35,000lb. Ramsey® 2 Speed Main Winches w/ 3/4” x 200’ Cable EEIPS (IWRC WLL 18,500 - lbs) w/Locking Swivel Hooks 6 x36
(NO CABLE - CUSTOMER PREFERS SYNTHETIC ROPE OWNER INSTALLED)(1) 50,000lb. Ramsey® 2 Speed Underlift Drag Winch w/ 3/4” x 250’ Drag Cable (IWRC WLL 18,500 - lbs) w/Locking Swivel Hooks 6 x36
(NO CABLE - CUSTOMER PREFERS SYNTHETIC ROPE OWNER INSTALLED)(2) 15,000lb. Ramsey® 2 Speed AUX Winches w/ 9/16” x 135’ Cable EEIPS (WRC WLL 10,500 - lb) w/ Locking Swivel Hooks 6 x 36
(NO CABLE - CUSTOMER PREFERS SYNTHETIC ROPE OWNER INSTALLED)Optional Accessory: JD Spreader Bar Spreader Bar Sling Kit:
2 8' Orange Round Slings
2 12' Blue Round Slings
1 1 1/2" Bow 1 5/8" Pin 30t Alloy Shackle
2 1 1/2" Bow 1 5/8" Pin 17t Shackle
2 1 1/4" Bow 1 3/8" Pin 12t Shackle
Optional Accessory - Flat Recovery Strap Kit
2 12" x 16' 2-ply Recovery Strap Cordura Wrapped Edges
2 12" x 26' 2-Ply Recovery Strap Cordura Wrapped Edges
4 6" Web Shackle w/Quick Pin
500LP Underlift:- 50,000 lb. Retracted lift capacity at 70 inches off tailboard
- 17,000 lb. Extended lift capacity at 149 inches off the tailboard
- 80,000 lb. Tow Capacity
- Reach Past Tailboard - Retracted with Forks at Ground Level 77"
- Reach Past Tailboard - Extended with Forks at Ground Level 147"
- Positive Tilt 9º
- Negative Tilt 21º
- Non-Proportional Remote
Standard Fork Package:
1 Frame Fork Adapter 5"
1 Frame Fork Adapter 5"
2 2.3" Low Profile Front Axle Fork
2 2.3" Medium Front Axle Fork
2 3" Tall Fork
2 4.5" Short Fork
2 4.5" Medium Fork
2 4.5" Tall Fork
2 6" Short Fork
2 5/8" Chain Adapter Fork
2 U-Bolt Cup Fork
2 T Handle
4 Hitch Pin .88" x 8"
2 Tie Down Strap HD
2 Chain Hook Adapter
2 Clevis Pin .88 x 6"
2 3" Cotter Pin
Optional Accessory Towing Items:- Back Up Camera - Paccar
- 25K Bus Arms/Tire Lifts & Storage
- 5th Wheel Attachment
- Pintle Hitch Attachment
- High Rise Fork Receivers
- Rear Facing U/L Camera
- 7" Fork Adapter/Storage
- Spring Forks/Storage
Outriggers & Platform
-360º Operational Load Chart
-7,400,000 RBM High Strength Steel Torsion Subframe
-Rear Spades w/Flip Down Spade Feet, Locking Pins & D-Rings
-Multi Position, Multi Direction Compacting Spade Feet
-Level Indicators for setting platform
-Built in tilt Alarm at 2º
S130 Outrigger w/ Low Profile Scissor-Style Outriggers w/D-Rings & Pivoting Spade Foot w/Locking Pins– Outriggers Footprint 112-inch-long x 220 inches wide (Performance Range Footprint 212" - 224"
– MAX Ground Penetration 18"
– Upgrade – Includes two (2) Outrigger 24 inch square Pads
Operator safety is top priority, so this JFB unit is equipped with Driver and Passenger Side Emergency Stop (E-Stop) Controls
Other Body and Miscellaneous:
- Hydraulic Oil Heater
-Boom & Pylon Dress Up Kit
-Forward Faciing Diamond Plate on Tunnel Box
-Battery Relocation Hdwr
-Grill Mounted Flashers
JFB Gold Storage:
JFB Tri Axle 50” Painted Toolbox
Ladder Storge (Drawer Mount)
Tool Drawer
Shackle Rack (Double Row)
Chain Binder Storage Wall Mount
Tow Light Storage
Stay Dry Silo
Base Body Shelf
Chain Rack Base Body
Chain Rack Tunnel Wall
Tool Storage Ax/Sledge/Pry Bar/Bolt Cutter
Snatch Block Storage (6 Blocks)
Bottle Jack Storage
Storage Shovel/Broom/Grizzly Bar
Spill Kit Storage
Other Optional Kits Included:
Telescopic LadderLevel 2 Endless Loop Sling Kit:
2 4' Yellow Round Sling V-8400#
2 6' Yellow Round Sling V-8400#
2 8' Red Round Sling V-13,200#
2 12' Red Round Sling V-13,200#
2 12' Blue Round Sling V-21,200#
2 16' Blue Round Sling V-21,200#
4 Cover Pad
Level 2 Chain Kit:2 10' 3/8" G70 Chain 6.600# WLL - Clevis Grab Hook Each End
2 20' 3/8" G70 Chain 6.600# WLL - Clevis Grab Hook Each End
2 10' 3/8" G100 Chain 8.800# WLL - Clevis Grab Hook Each End
2 10' 1/2" G100 Chain 15.000# WLL - Clevis Grab Hook Each End
2 20' 1/2" G100 Chain 15.000# WLL - Clevis Grab Hook Each End
4 3/8" - 1/2" Ratcheting Chain Binders 8" Takeup 9,200# WLL
2 Eliminator Bridle 1/2" x 12' G100 2-Leg Chain Sling - Latching Clevis Sling Hooks
2 5/8" x 2 G100 Oblong Master Link & Foundry Hook Chain
Level 2 Shackle Kit:
2 3/4" Bow 7/8" Pin 4.75t Shackle
2 1" Bow 1 1/8" Pin 8.5t Shackle
2 1 1/4" Bow 1 3/8" Pin 12t Shackle
2 1 1/2' Bow 1 5/8" Pin 17t Shackle
2 7/8" Master Link 8.2t
2 1 3/16" Master Link 15.5t
Snatch Block Kit 5-Winch:3 10" 12T Snatch Block
2 8' 8T Snatch Blocks
*******************************************************************************
JD A# CONFIGURATION:
WRP 013 W/R MN 3/4"X200'EEIPS SWVL HOOK
UWR 008 W/R UL 3/4"X250'EEIPS
UNL 067 500LP U/L 3-STAGE 149" 50K 50K DRAG WNCH
TWA 027 FIFTH WHEEL ATTACHMENT
TWA 023 BALL 2 5/16" FOR PINTLE HOOK
TNL 007 50" TUNNEL
TLF 002 LIFT,25K TIRE
TBM 461 BODY, JFB REAR, TRI
SRT 082 JFB GOLD, TRI, TALL TUNNEL
SPA 008 S/P IN-CAB W/UL KW T880
RUR 018 REAR DOORS,TRI PAINTD DOOR&FRM
RUA 021 50" TNL PAINT DOOR& FRAME
RMT 028 WIRELESS REMOTES
RIG 010 SNATCH BLOCK KIT 5 WINCHES
RIG 008 PKG SHACKLE KIT LEVEL 2
RIG 005 PKG HD CHAIN KIT LEVEL 2
RIG 003 PKG LOOP SLING KIT LEVEL 2
PTT 199 PTO AIR SH8S_U6807-A1PX
PNT 105 SPECIAL COLORS
PMP 043 PUMP DIRECT MNT PTO 25 GPM
PBY 001 PAINT A)
OSP 003 OUTRIGGER PADS
OGS 015 FRONT OUTRIGGERS
MOP 390 JD112" 40K SPREADER BAR
MOP 316 PYLON DRESS-UP KIT POLISH BLANK
MOP 311 BOOM DRESS-UP KIT BLANK
MOP 299 PAINT - MAIN,DRAG,& AUX WINCH
MOP 296 CAMERA U/L, MOUNT ONL
MOP 264 7" TALL FORK ADAPTER
MOP 107 HYDRAULIC OIL HEATER
MOP 084 RECOVERY STRAP KIT
MKT 084 NORTH AMERICA
MDT B87 35-40T ROTATOR
LUW 001 LIGHTS, UPPER WORK, LED
LUL 001 LIGHTS, UNDERLIFT, LED
LUH 001 LIGHTS, UPPER HOOK UP
LTO 227 LIGHTS BOOM WORK WHELEN
LTF 002 LIGHTS, FLASHER, GRILL MOUNTED
LOR 001 LIGHTS, OUTRIGGER, LED
LLH 001 LIGHTS, LOWER HOOK UP
LAD 025 TELESCOPIC LADDER KIT
KIT 032 SPREADER BAR SLING KIT
HTP 015 PINTLE HOOK W/2" BALL
HBD 110 HEADBOARD, ROTATOR
FFK 001 FRAME FORK INSTALLATION
ELO 028 WING LIGHTS,22" LED,WHELEN
DWO 030 WINCH, UL DRAG, RAMSEY 50K
DPC 028 NO BOOM LOGOS
DLB 008 LTBAR AMB WHELEN 72" LED W/DOT
CVS 035 KW T880 VISOR
DIA 001 FRONT DIAMOND& MARKER TUNNEL
CVS 047 U/L& BACK UP CAMERA KIT
CVS 032 WHEEL COVERS TRI AXLE
CVS 029 POST BUILD ALIGNMENT
CVS 026 KW T880 40" SLEEPER LVL 2
CTS 314 CTL MULTIPLEX&E/H W/AUX WINCH
CHY 029 2024 CHW 006 8X4 (1STEER - 1LIFT - 2DRIVE)
CHT 782 FULLER RTLO-20918B MANUAL
CCB 117 SLEEPER KW 40" FLAT TOP
CAX 526 226" CT
BWW 007 AUX WINCH RAMSEY 15K
BWO 069 WINCH MAIN BOOM RAMSEY
BWC 003 CABLES AUX WNCH 9/16X135 EEIPS
BUC 005 CAMERA BU SPD CAB MON MNT ONLY
BRO 003 BATTERY RELOCATE,HARDWARE ONL
BMT 036 BOOM 3STAGE W/AUX WINCH
BIC 008 INSTALL JDC WAITING VIN#
AXE 902 92K-20K-52K/52K-AR-ADS
********************************************************************************
